100W Laser Light Moving Head Beam Light Waterproof Moving Head for Outdoor Scenic Area
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Intuiit |
| Certificación: | CE&RoHS |
| Número de modelo: | Xy-052p |
Pago y Envío Términos:
| Cantidad de orden mínima: | MOQ 20pcs |
|---|---|
| Detalles de empaquetado: | Caja interior+ Caja principal/Caja de vuelo |
| Tiempo de entrega: | 25-35 días para orden de masa |
| Condiciones de pago: | T/T por adelantado (depósito 30%, 70% de pago de saldo antes de la entrega) |
| Capacidad de la fuente: | 5000PCS/mes |
|
Información detallada |
|||
| Fuente: | Láser de 100W | CCT: | 10000K |
|---|---|---|---|
| IRC: | 75 | Ángulo de haz: | 0.8 ° |
| Rueda de colores: | 12+1open | Iris: | Cmy |
| Rueda gobo girada: | 10+1 Abierto | Rueda de gobo fijada: | 23+1open |
| Remilgado: | 18/36 prisma faceta + 6 prisma lineal | Grado IP: | IP66 |
Descripción de producto
Dasen Imager B100 Moving Head: Precision Engineering for Professional Lighting
Body:
Presenting the Dasen Imager B100, a compact wash/beam moving head engineered to deliver high-output performance without compromising on versatility. Designed for rental companies and installation professionals who demand reliability, it combines cutting-edge optical technology with rugged durability.
Key Technical Specifications:
-
Advanced Color Mixing: Features a patented 8-color wheel complemented by a full CMY mixing system, allowing for seamless transitions and an infinite spectrum of precise hues.
-
Versatile Pattern Projection: Equipped with 23 fixed and 10 rotating, indexable gobos (plus 1 open) to provide dynamic texture and limitless pattern combinations.
-
Spatial Effects: An ultra-bright rotating prism adds depth and complexity, creating immersive, multi-layered aerial effects.
-

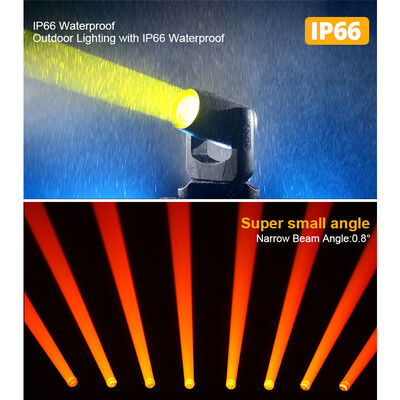

All-Weather Construction: Certified with an IP66 rating, the housing ensures absolute protection against water jets and dust, guaranteeing consistent operation in any European climate—from outdoor festivals to humid coastal venues.
Ideal for large-scale concerts, theatrical productions, and high-end architectural installations, the Imager B100 delivers studio-grade precision in a rugged, tour-ready package.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

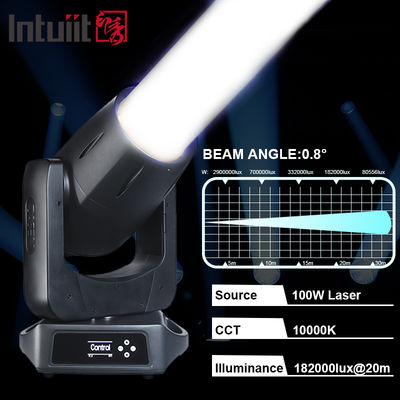

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |
| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |
| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
